9. Testing the setup

9.1. (Re-)Starting the daemons

Now all the software has been installed and configured. Lets do some testings now. First you have to (re-)start all the daemons affected

Hopefully all daemons started without any complaints. Note that this is assuming saslauthd is started in the cyrus startup script.

Now you can verify if the daemons are running properly by issuing netstat -an|grep LISTEN

The output should look similar like that:

bond:~ # netstat -an|grep LISTEN
tcp        0      0   *               LISTEN
tcp        0      0   *               LISTEN
tcp        0      0*               LISTEN
tcp        0      0   *               LISTEN
tcp        0      0   *               LISTEN
tcp        0      0  *               LISTEN
tcp        0      0    *               LISTEN
tcp        0      0    *               LISTEN
tcp        0      0   *               LISTEN

The port are assigned like this:

9.2. Testing Web-cyradm

Now you should be able to connect to http://localhost/web-cyradm/ Login with the credentials defined before.

Define a domainname and some accounts. Be sure the domainname belongs to your server. If not you have to fake it by enter the domain in /etc/hosts. The domain must also be defined as local in /etc/postfix/ (mydestination = domain)

Please be sure that you are providing a unique domain prefix when adding a new domain. I.e. test for the domain If you don't provide such a prefix you will get a error message.

9.3. Testing postfix

Now we are going to write a mail:

telnet localhost 25
Trying ::1...
Connected to localhost.
Escape character is '^]'.
220 mail ESMTP Postfix

helo localhost
250 mail
mail from: luc at
250 Ok
rcpt to: luc at localhost
250 Ok

354 End data with <CR><LF>.<CR><LF>
some text
250 Ok: queued as B58E141D33


If you see such a message, then all seems to work fine. Be sure to specify a recipients address you previously defined in the web-cyradm database

If you get an error like this:

rcpt to: luc at localhost
451 <luc at localhost>: Temporary lookup failure

Then either MySQL is not running, DB permission are not set properly or you missconfigured /etc/postfix/

On any errors, I suggest to examine /var/log/mail. Often you will find some hints whats went wrong.

9.4. Testing the IMAP functionality

A lot of users like to test the cyrus-IMAPd with the Command Line Interface (CLI) cyradm and they are failing. To be successful with cyradm, you will need to add the cyrus user to /etc/sasldb2 because cyradm always authenticates against SASL AND IMAP.

To add the Cyrus user to the sasldb use the command:

saslpasswd2 -c cyrus
Password: (enter your passwd)
Again (for verification): (enter your password)

To use the cyradm CLI please take care that the tool does not recognize standard CLI-options like -u and similar. Please follow the syntax like described in the man page cyradm 1 like the following example:

bond:~ # cyradm --user cyrus --server localhost --auth plain
Password: # This is the SASL2 password
IMAP Password: # This is the IMAP password that you need to enter in the mysql-table accountusers

With the Cyrus command help you will see all possible commands and its abbreviations.

To make that kind of tests. you just need a mailclient like kmail or netscape (Yes of course, M$-Products are working as well) but in this example I'm using kmail.

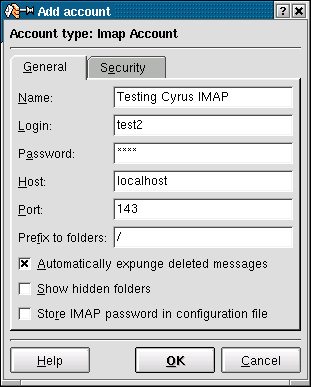

Figure 3. Creating a new account

If you enabled TLS/SSL, you may wish to test also the following:

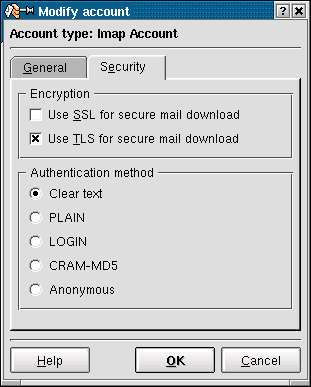

Figure 4. Testing TLS/SSL functionality

If login fails, and you are sure, you typed the right password, take care that MySQL is running.
